LSL75 l LSL90

Product LSL75 l LSL90 has a 90 LED light source that provides better quality of light compared with traditional lamps. Aluminum casing provides extra durability in all environmental conditions. Produced according to automotive quality standards. LED driving current: 400ma or 500 mA

• • Use Urban roads, highway ramps.
    Fast traffic roads
    Roads with luminance required 1 cd/m2
    Recommended pole height 8-12m
    (reference category ME3)
  • Mounting Universal and fast mounting system.
    Light post diameter 60mm.
    On request different fitting systems.
    Lamp can be tilted +/- 15* for most suitable mounting.
    Light flux can be adjusted horizontally

• General features

  • Power 110-250V ( 50/60 Hz )
  • Power consuption 107 - 138W
  • Light Flux 12900 - 15700lm
  • Light source 75 l 90 LED
  • Light Tone 4000K
  • Minimum life time 060.000hours
  • Protection grade IP 66
  • Weight 08.5Kg
  • Brochure scheda_tecnica_LSL75_90.pdf
  • Mounting Istruzioni_di_montaggio.pdf

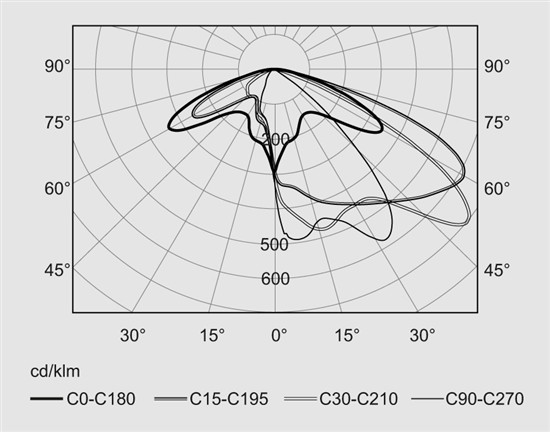

  • Photometric Data Fotometrie.zip

• 1830841Available versions: base version (no dimming) - 400mA

• 1830843Available versions: dimmeng version 50% - 400mA

• 1830845Available versions: dimming range 1-100% - 400mA

• 1800841Available versions: base version (no dimming) - 500mA

• 1800843Available versions: dimming version 50% - 500mA

• 1800845Available versions: dimming range 1-100% - 500mA
