LSL10 l LSL15

Product LSL10 l LSL15 has a 10 or 15 LED light source which provides better quality of light compared with traditional lamps. Aluminum casing provides extra durability in all environmental conditions. Produced according to automotive quality standards. LED driving current: from 280 mA to 500 mA

• • Use Small roads, private roads.
    Any street where 5 lx is required
    (reference category S3).
    Suitable for car parks bike paths and gardens.
    Recommended pole height up to 5 m.
  • Mounting Universal and fast mounting system.
    Light post diameter 60mm.
    On request different fitting systems.
    Lamp can be tilted +/- 15° for most suitable mounting.
    Light flux can be adjusted horizontally

• General features

  • Power 110-250V ( 50/60 Hz )
  • Power consuption 14 - 26W
  • Light Flux 1400 - 2500lm
  • Light source 10 l 15 LED
  • Light Tone 4000K
  • Minimum life time 0060.000hours
  • Protection grade IP 66
  • Weight 02.5Kg
  • Brochure LSL10_15_scheda_tecnica_2.pdf
  • Mounting Istruzioni_di_montaggio.pdf

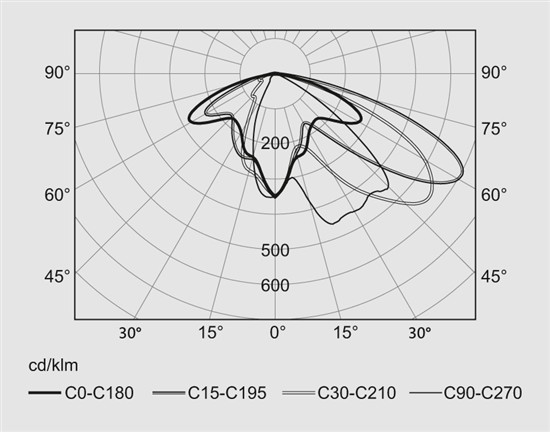

  • Photometric Data Fotometrie.rar

• 1820941Available versions: standard version (no dimming function) 280mA

• 1820943Available versions: version with power regulation 50% - 280mA

• 1820945Available versions: regulation range 1% up to 100% (control signal 1V - 10V) - 280mA

• 1800941Available versions: base version (no dimming) - 350mA

• 1800943Available versions: version with dimming 50% - 350mA

• 1800945Available versions: dimming range 1-100% - 350mA

• 1810941Available versions: base version (no dimming) - 500mA

• 1810943Available versions: dimming version 50% - 500mA

• 1810945Available versions: dimming range 1-100% - 500mA
